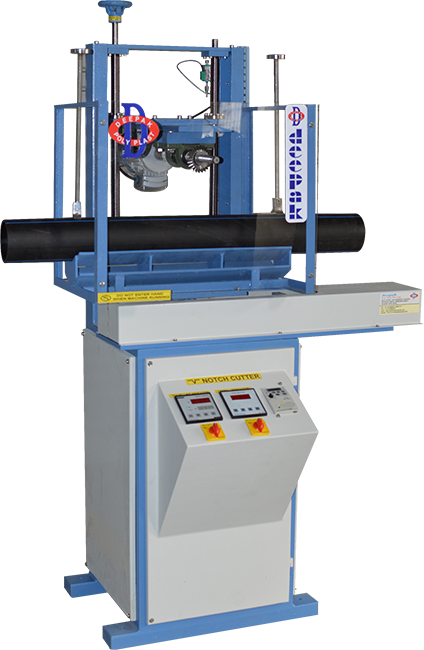

THE DEEPAK V' Notch making machine is used for making the 'V' Notch over the pipe surface for slow crack growth resistance test.
System & Technical Features
- Machine is made in accordance with ASTM F-1474-93 and ISO-13479, IS 14885, IS 4984 (Amended).
- 'V' Notch making machine is used for making the notch
- System Status: Semi Digital type.
- Digital Controller: Sample Travelling & depth Controller
- Maximum Diameter: up to 250 mm
- Cutter: 60° equal angle cutter
- Depth measurement: Depth measurement via digital controller.
- Depth length: Depth length adjustable
- Power Supply: 415 V Ac, 50HZ, 3 phase +E+N.
