Product Description

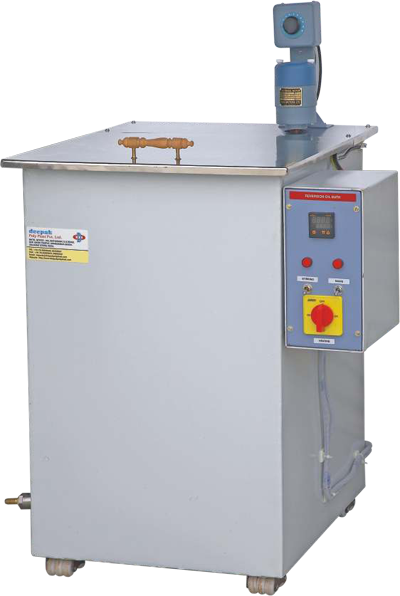

THE DEEPAK reversion Oil Bath Tester is use to determine reversion characteristics of R-PVC pipe as per immersion method of IS-12235 (Part - V) standard.
Standard Inner Size
- 26 x 20 x 16 inch (suitable up to 250 mm testing with oil filling capacity 140 Litre.)
- 28 x 22 x 32 inch (suitable up to 400 mm testing with oil filling capacity 180 Litre.)
- 42 x 34 x 27 inch (suitable up to 315 mm testing with oil filling capacity 180 Litre.)
Features
- Microprocessor based temperature controller with PID action.
- Temperature range up to 200 Deg. C. With least count of +/-0.1 Deg. C.
- Inside S.S. body, Outside M.S. body, with Power coting
- complete glass wool insulation
- Stirrer facility is provided for uniform Temperature.
- Top cover made by S. S. Sheet.
- Power Supply: 415 VAC, 50 Hz, phase +N+E.
- Customize Size can be modified According to customer requirement
