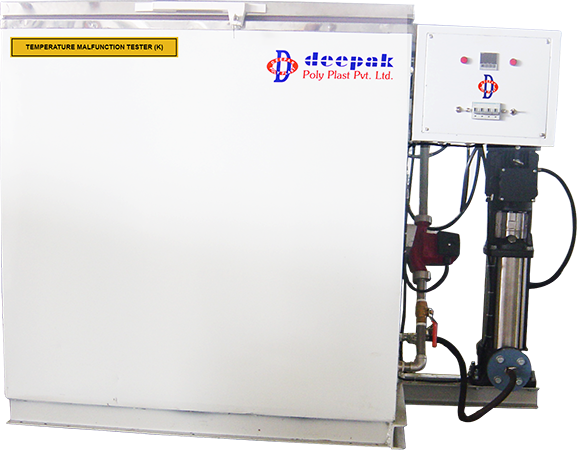

TEMPERATURE MALFUNCTION TESTER
Temperature Malfunction Tester is used for checking the malfunctioning of CPVC Pipe at high temperature at a certain pressure Hot Water Bath (Digital Temp. Cont. Panel) Vertical Bath for Temp. Malfunctioning Test
Product Description
THE DEEPAK Malfunctioning Bath for CPVC pipes & fittings - Water circulation test at 95 & 82 °C with inner water circulating pumps fitted + with external high pressure Grundfoss water pump fitted.
System Features
- System Status: Digital
- Heating: High efficient S.S Tubular Heating System
- Water Circulation: Through water circulation pump of "GRUNDFOSS Pump - CRCM - 1 Make.
- Inner Size: 40" X 20" X 40" & Available customization Bath Size
- 0-10 bars electronic pressure display unit fitted
- Temperature Range: Ambient to 100 °C
- Resolution: 0.1 °C
- Accuracy: +/- 0.5 °C
- Pressure Controller: 0 - 10 bar
- Resolution: 0.01 bar
Technical Features
- Temp. Controller: Digital Micro Processor based PID Controller
- Pressure Controller: Digital Micro Processor based Pressure Controller
- Transducer: 100 Bar
- Power consumption: 9 kW
- Power Supply; 230 VAC, 50 HZ
- Insulation: Injected Puff
- Material of Construction: Inner Chamber: S.S Body Structures
- Outer Chamber: M.S. with Power coated
Water Circulating Systems
- Model: A96127254 P 10818 (GRUNDFOSS Pump - CRCM - 1) Type: CRCM1 /1.10 kw
- Power Requirement: 220 V AC - 50 Hz - Single Phase. With attachment of ½" inch hose coller connection for inlet & outlet.
- With Flow Control Needle / Ball Valve Mounting & Brass Block Mounted
