Environmental Specimen Conditioning

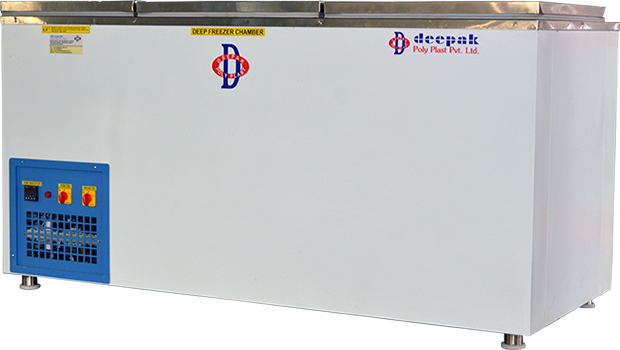

Deep Freezing Chamber

Get Help

Product Description

Deepak zero-degree chamber is specially used to condition the R-PVC pipes at 0°C. for impact testing as per IS 4985 standards.

A true material comparison is possible only when test values are determined by identical test methods under identical conditions. In general, physical and mechanical properties of plastics and electrical insulating materials are affected by temperature and humidity. Plastic materials tested above/below room temperature will yield relatively higher impact strength and lower tensile strength as well as modules. In order to make reliable comparisons of different materials and test results obtained by different laboratories, it is necessary to establish standard conditions of temperature and humidity for testing

Standard Inner Size

  • 18 x 18 x 18 inch (Front opening single door model).
  • 20 x 15 x 30 inch (Top opening single door model).
  • 45 x 24 x 30 inch (Top opening two door model).
  • 70 x 30 x 32 inch (Top opening three door model)

Features

  • Microprocessor Based PID Temperature Controller.
  • Temperature Range: Ambient to - 5°C or - 20 °C / resolution: 0.1 °C.
  • Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber.
  • Unique design of thermal barrier for better energy efficiency.
  • hermetically sealed Compressor with CFC free refrigerant
  • Deep Freezer insulation inner & outer walls filled with high grade PUF for avoiding Cryogenic loss.
  • Sensor failure error code Alarm.
  • Cut-off low/high temperature.
  • Time delay for compressor switch on.
  • Overload cut off relay for compressor
  • keeping doors tightly locked, thus eliminating chances of loss of temperature
  • Power Supply: 230V Ac, 50 Hz Single Phase.

Testing Equipments

  • Specimen Preparation
    • Contour Cutting Machine
    • Dumbell Die Punching Press Contour Cutter
    • CNC Milling Contour Cutter
    • Notch Cutter for Izod Charpy Test
    • 'V' Notch Cutter for Pipes
  • Lab Scale Production/Analysis Machines
    • Two Roll Mill
    • Torque Rheometer / Labscale Extruder
    • Hydraulic Sheet Moulding Press
  • Internal Pressure Characteristics
    • Hydrostatic Pressure Testing for Pipes
    • End Caps for Pipes
    • Hot & Cold Test Bath
  • Mechanical Testing
    • Universal Tensile Machine
    • Ring Stiffness
    • Falling Dart Impact
    • Falling Dart Impact for Film
    • Elmendorf Tear Tester
    • Co-efficient of Friction Tester
    • Izod & Charpy Impact Tester
  • Physical / Chemical Testing
    • Melt Flow Indexer
    • Carbon Black Content Tester
    • Carbon Black Dispersion Tester
    • Ash Content Tester/Muffle Furnace
  • Analytical Instruments
    • Bulk Density
    • Electronic Weighing Balance Cum Digital Density
    • Microscope
    • Sieve Analysis Tester
    • Go Not Go Gauges
    • ID / OD Measurement Piston/Ring/'C' Type Gauges
    • Cone Tester
  • Environmental Specimen Testing
    • Accelerated Weathering UV Tester
    • Oxidation Induction Tester/Differential Thermal Analyzer
    • ESCR
    • Shrink Oil Bath
    • HDT/VSP Tester
  • Environmental Specimen Conditioning
    • Deep Freezing Chamber
    • Hot Air Oven
    • Humidity Chamber
    • Reversion Oil Bath
  • Special Purpose Machines
    • Manometer for Waterproofness Test
    • Thermo Cyclic Tester
    • Temperature Malfunction Tester
    • Emitter Flow Rate Variation Tester
    • Opacity Tester
    • Methylene Chloride Bath
    • Electrical Conduit Pipes/Casing Testing Machines
  • Accessories
    • Grip Sets and Loadcells for UTM
    • MFI Cleaning Kit
    • MFI Additional Loads
    • Test Bench for Fittings Pressure Test Application
    • Leak Tightness of Joints Against Angular Deflection
    • GSM Cutter + Rubber Pad
  • Moisture Analyzer Tester

YOU MAY ALSO BE INTERESTED IN

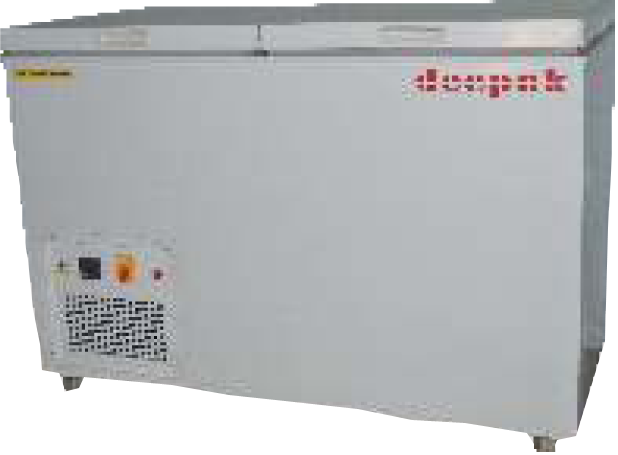

Deep Freezing Chamber
Top Opening

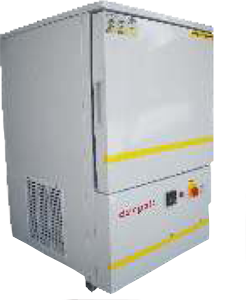

Deep Freezing Chamber
